6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

Name: 6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding
Brand: CHEEO
Price: 10 USD

Quality 6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding for sale

Place of Origin : Guangdong, China

Brand Name : CHEEO

MOQ : 1

Price : $10,000-11,000

Output Power : 6000W

Laser Wavelength : 1080

Welding Speed : 10-100mm/s

Position Accuracy : ±0.05mm

Repositioning Accuracy : ±0.01mm

Rapid Positioning Speed : 1000mm/sec(XYaxis), 500mm/sec(Zaxis)

Beam Quality : <1.4㎡

Power Stability : ≦3%

Laser Focusing Focal Length : F=180mm

Maximum Machining Size : 800*600mm/1000*800

Ambient Temperature : 5-45℃

Overall Power Consumption : 10KW(6000W)

Overall Dimension : L1343xW1454xH22235mm

Machine Weight : 500 KG

Coolant System : External water cooling

Contact Now

Product Description

6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

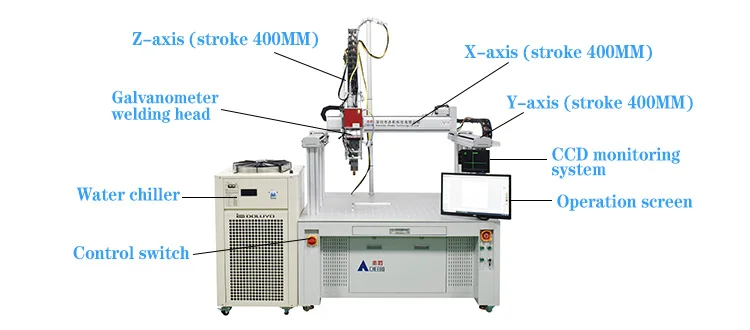

This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, PC control system, etc. It can perform welding of any planar geometric shape trajectory such as points, lines, circles, etc. It is an efficient, safe, and stable high-power fiber laser welding machine that performs well in lithium battery welding process.

Model features: 1. The continuous galvanometer laser welding machine uses the most advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum). Combined with our company's independently developed and designed gantry machine tool, it has good rigidity and stability 2. For fast and precise welding, fiber lasers have a series of advantages such as high beam quality, stability and reliability, low operating costs, and small size, making them the preferred equipment for lithium-ion laser welding processing. 3. High lifespan gantry dual drive motion platform cabinet, gantry style motion structure, large surface travel welding range, high photoelectric conversion efficiency, and excellent beam quality. 4. Operated with precision guide rail transmission, equipped with high response servo motors, high precision and fast speed; 5. Laser welding has fine spots, high melting depth, small taper, high precision, and a smooth welding surface without bubbles; Laser welding processing is pollution-free, with a small heat affected area and minimal deformation; 6. PC industrial computer, welding CNC programming system, welding software editing is simple and easy to learn. 7. Adjustable laser power, low power consumption, daily maintenance free 8. Automatic top pressure welding device reduces welding fixture requirements 9. Support adding CCD visual positioning system and automatic focal length measurement system functions

Specification

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8 KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Details Photo

Welding point monitoring, Autofocus

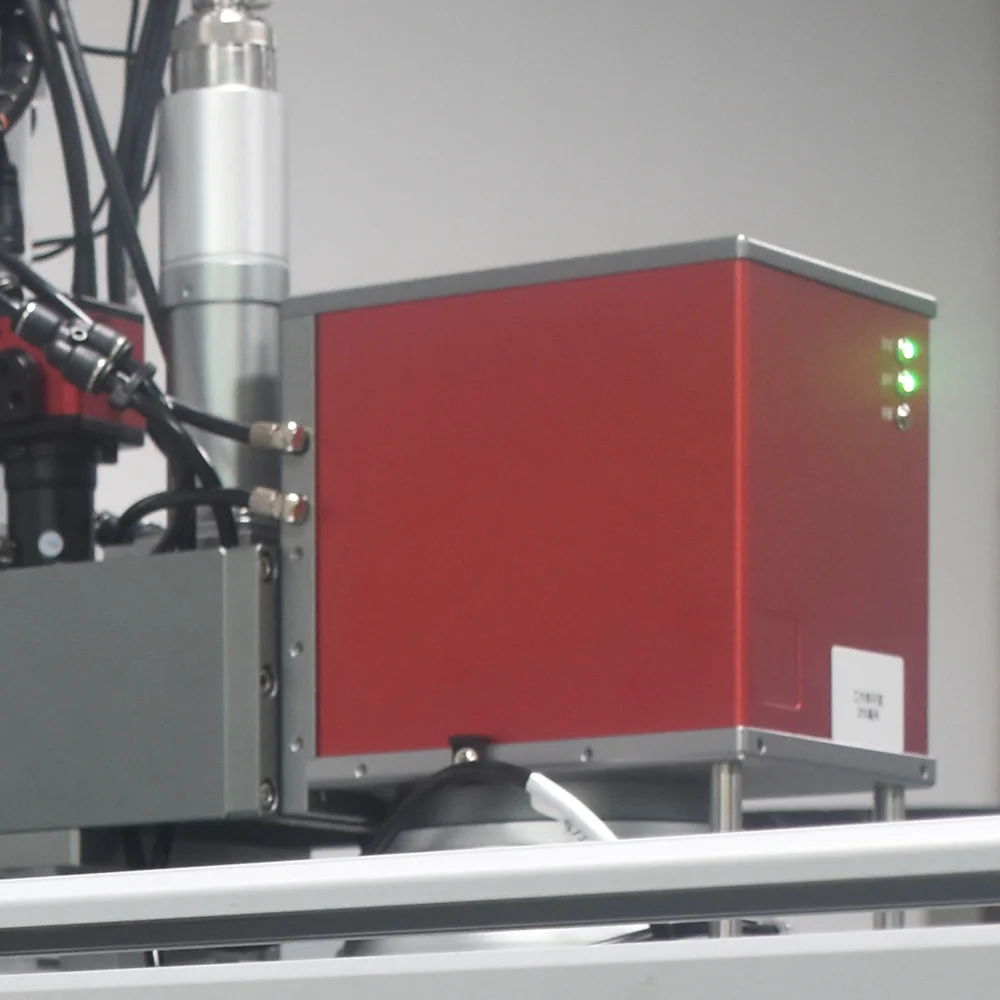

High precision welding joint of vibrating mirror

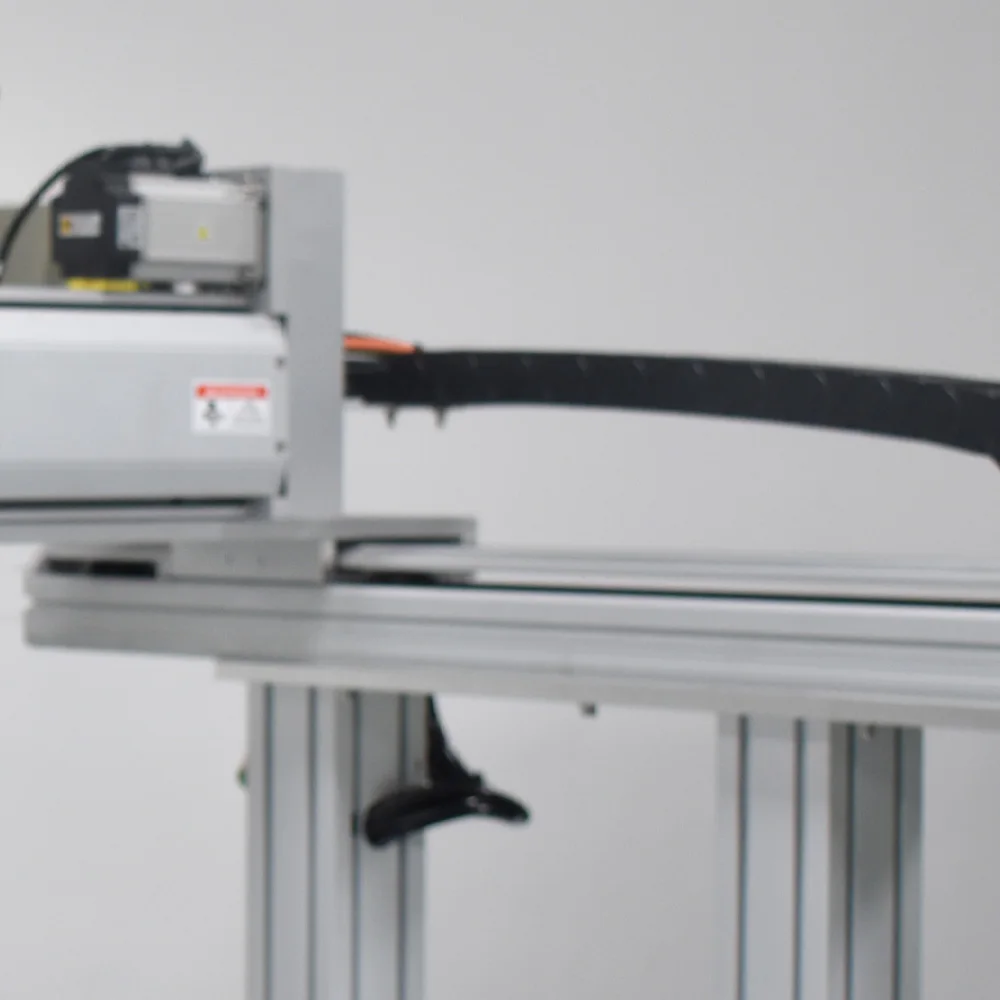

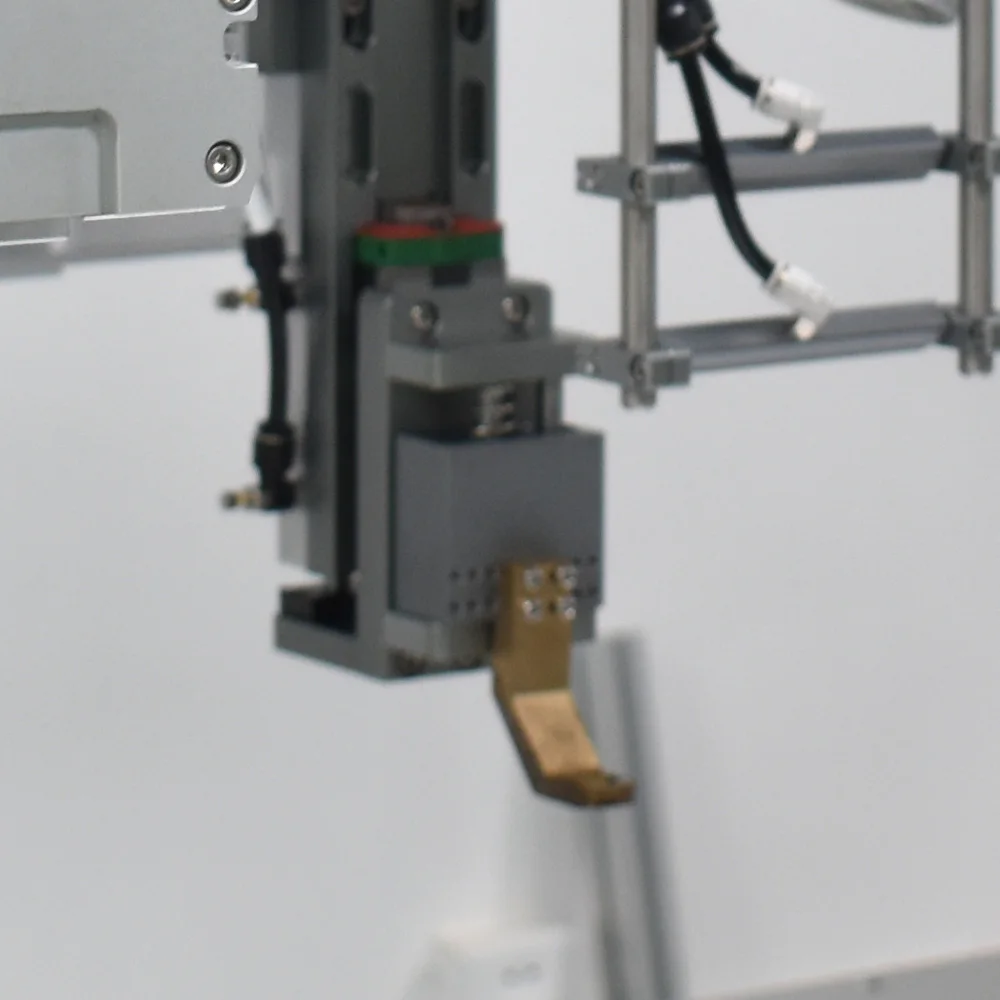

Rail module

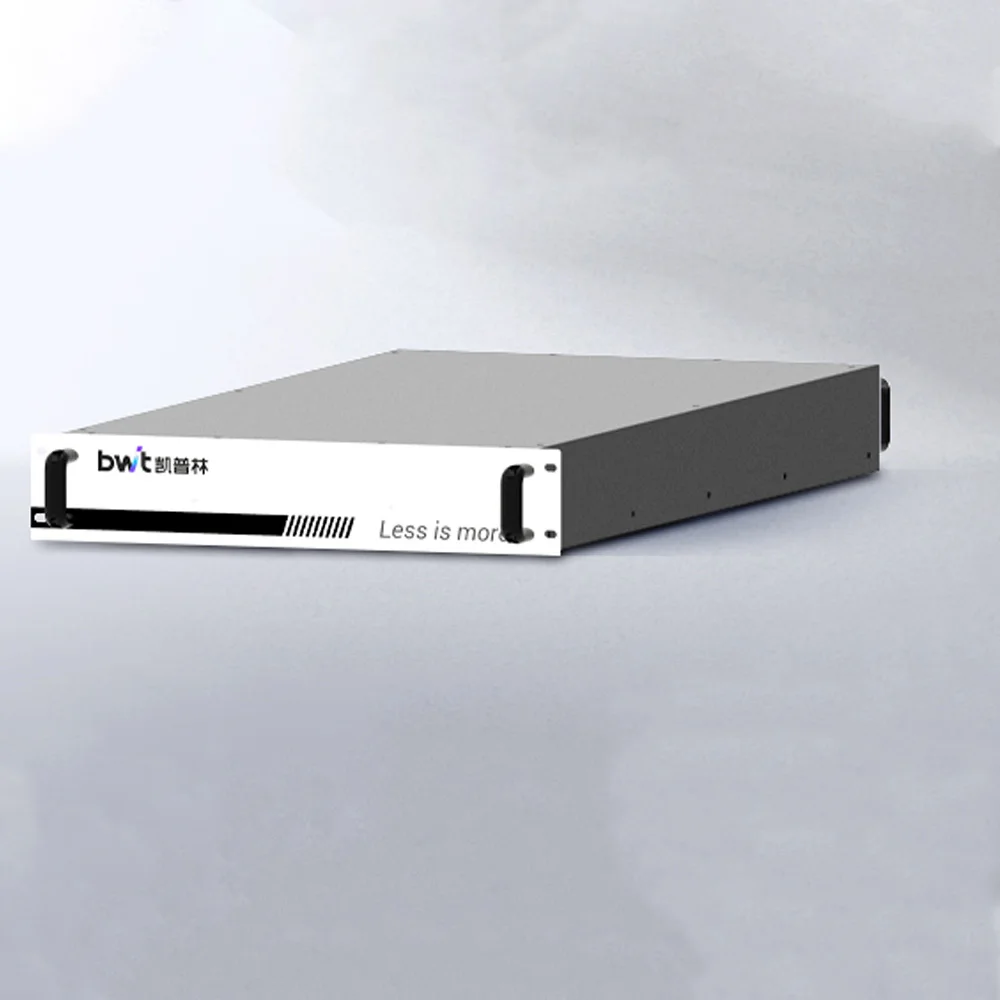

BWT laser welder

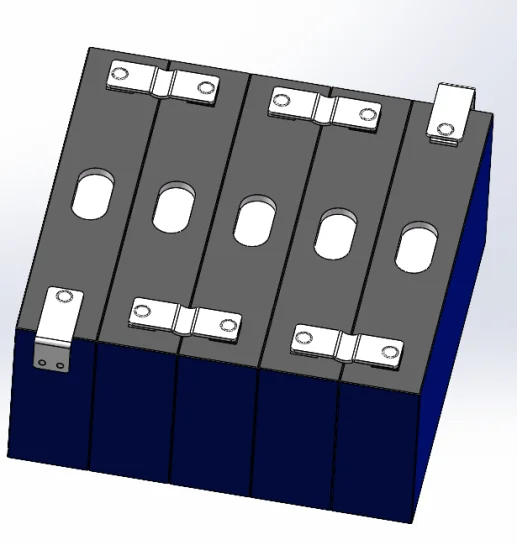

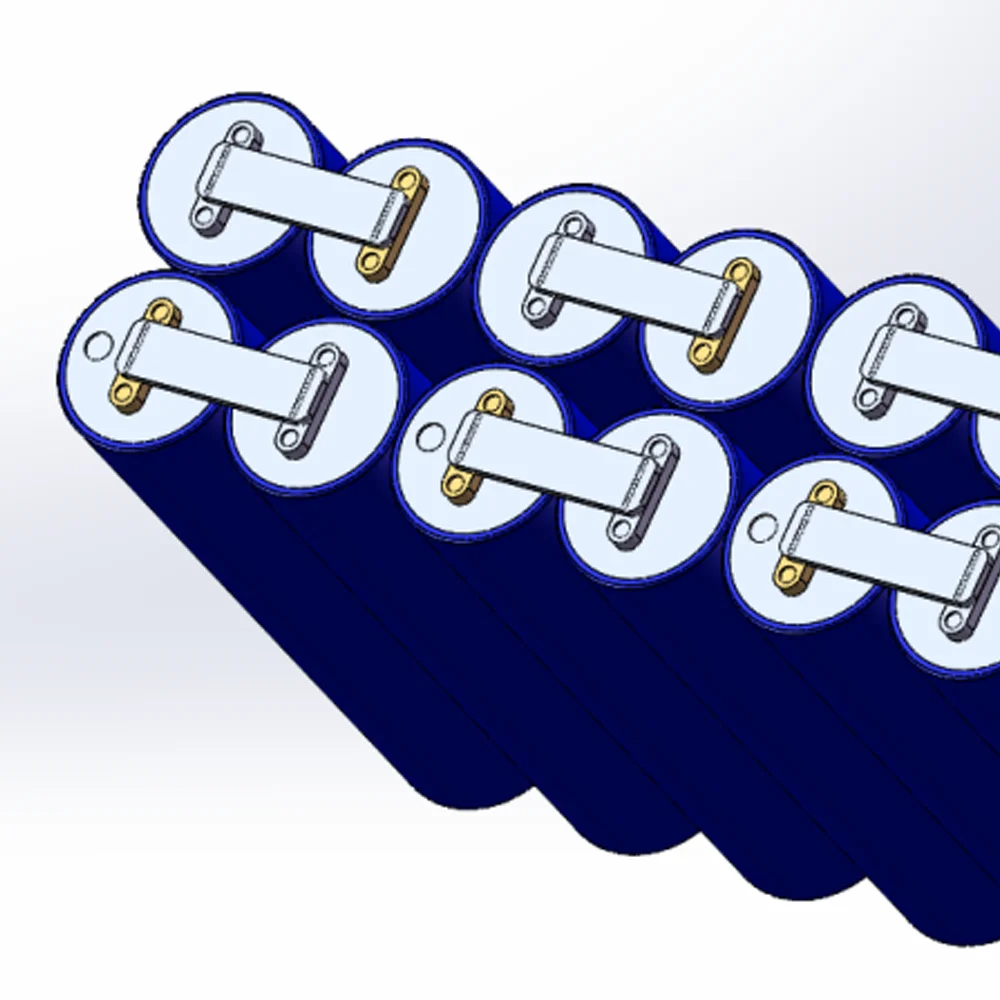

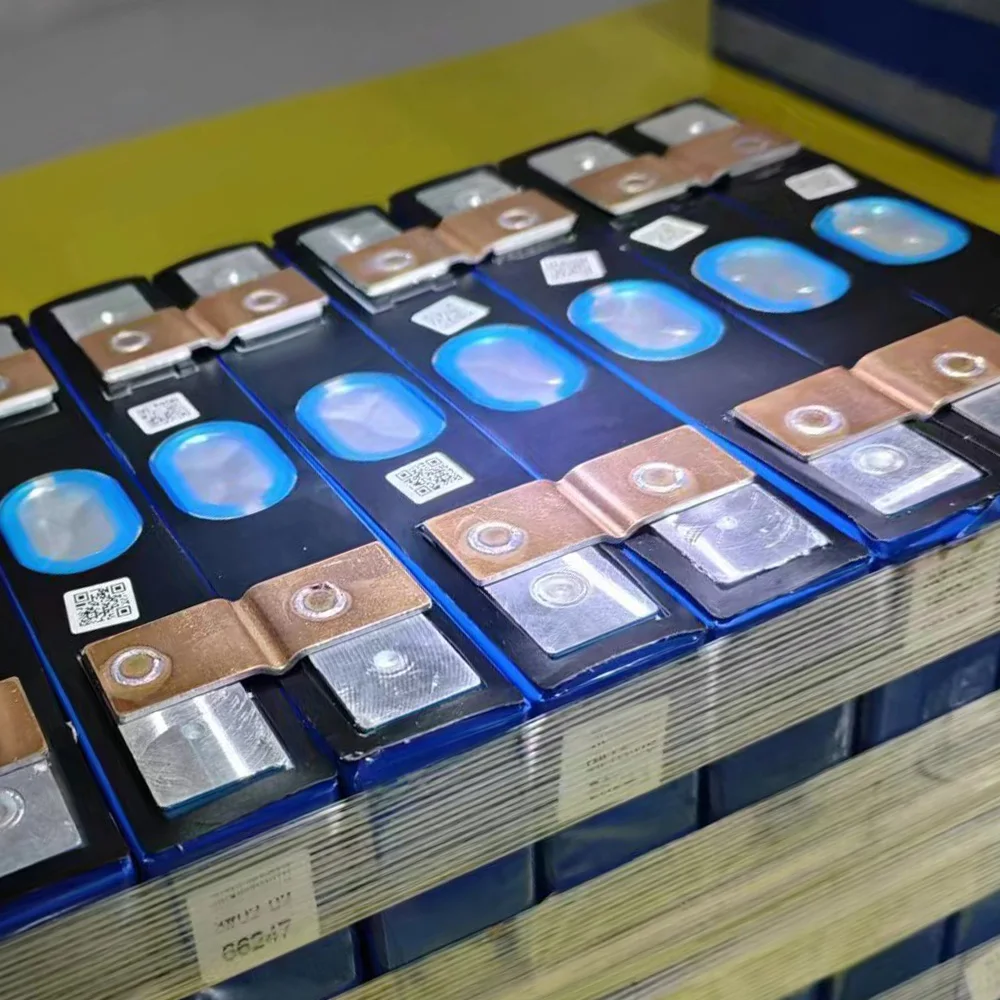

Welding product diagram

Company Profile

FAQ

Q: I don't know which one suits me? A: Please provide us with the following information 1) Battery model and type. 2) Welding materials and welding thickness We have extensive sales experience and can provide you with advice.

Q: How to install and run the machine? A: Our technicians have already installed the machine before shipping. For the installation of some small components, we will randomly send detailed training videos and user manuals. 95% of customers can self learn.

Q: What is your minimum order quantity? A: We do not have a minimum order quantity. Whether it's 1 order or 100 orders, we will wholeheartedly support you.

Q: How is your factory doing in terms of quality control? A: Quality first. Each unit will undergo over 20 tests. After all tests pass, our QC will test the welding performance.

Q: What should I do if there is a problem with the machine? A: If you encounter such a problem, please contact us as soon as possible. Do not attempt to repair the machine yourself or by others. We will respond as soon as possible within 24 hours to resolve your issue.
